Choose the Stihl charger to best suit your requirements.
AL 501
AL 501, 230 V hi-speed quick charger, recommended for STIHL AP System batteries (can also be used with AK System batteries). With operating mode indicator and active battery cooling. Cable tie with Velcro strap. The charger can be wall mounted if required.
Charge Time Example.
- AP 500 S battery in 40/55 minutes
AL 301
The AL 301 automatically switches off when the battery is fully charged to prevent overcharging too. Two-stage charging means the battery is first charged at a constant current up to a predetermined voltage limit. Then, the charger switches over to charging at a constant voltage before the current reduces itself automatically until charging is complete. A built in cable tie with Velcro strap on the back means you can wind the cable to the charger to reduce its length. Plus, this charger can be wall mounted for space saving storage.

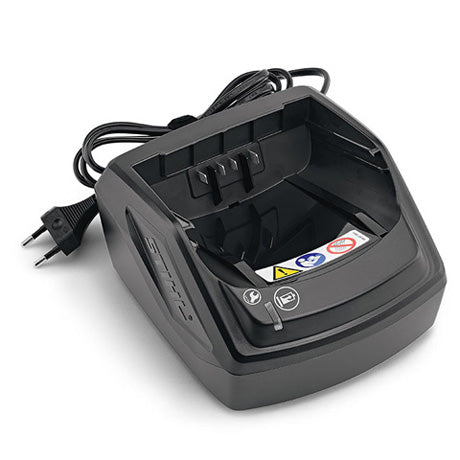

AL 101. 230 V charger, recommended for STIHL AK System batteries. With operating mode indicator (LED) and passive battery cooling. Cable tie with Velcro strap.The charger can be wall mounted if required.
| AL 501 Technical data | Value |
|---|---|
| Charging time AR 1000 min 1) | 120 |
| Weight kg | 1.3 |
| Charging time AR 2000 min 1) | 130 |
| Charging time AR 3000 min 1) | 160 |
| Rated voltage V | 220-240 |
| Power output kW | 0.6 |
| Weight kg 2) | 1.3 |
| Rated current A | 2.6 |
| Protection class | II |
| Charging current A | 12 |
